HumiSeal® 1C49LV is a moisture curing, low viscosity, VOC-free silicone conformal coating which provides excellent moisture and environmental protection for printed circuit assemblies. HumiSeal® 1C49LV is solvent free. The coating demonstrates outstanding flexibility, fluoresces under UV light for ease of inspection and can be repaired. HumiSeal® 1C49LV can be cured at room or at elevated temperatures. HumiSeal® 1C49LV is MIL-I-46058C qualified, IPC-CC830 and RoHS Directive 2011/65/EU compliant, and recognized under UL File Number E105698.
Overview
HumiSeal® 1C49LV is a moisture curing, low viscosity, VOC-free silicone conformal coating which provides excellent moisture and environmental protection for printed circuit assemblies. HumiSeal® 1C49LV is solvent free. The coating demonstrates outstanding flexibility, fluoresces under UV light for ease of inspection and can be repaired. HumiSeal® 1C49LV can be cured at room or at elevated temperatures. HumiSeal® 1C49LV is MIL-I-46058C qualified, IPC-CC830 and RoHS Directive 2011/65/EU compliant, and recognized under UL File Number E105698.
Overview
Specifications
| Chemistry | Silicone |
|---|---|
| Curing Conditions | Air, Heat, Moisture |
| Material | 24 hrs @ RT or 20 min @ 76°C* |
| Volatile Organic Compounds | 50 - 200 microns |
| Cure Time | 24 hrs @ RT or 20 min @ 76°C* |
Downloads

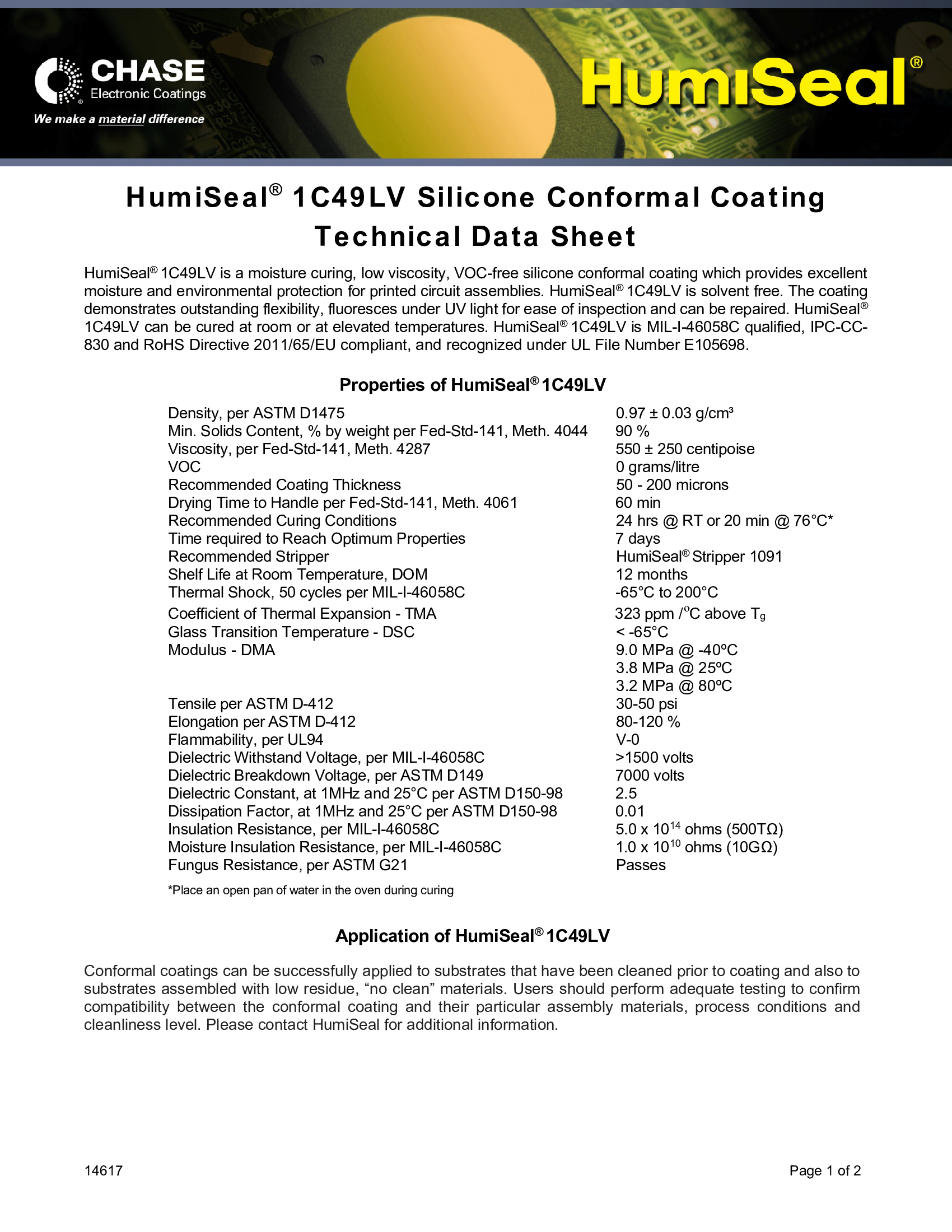

HUM 1C49LV Technical Data Sheet
PDFDownload
