HumiSeal

HUM 1B59LU

HUM 1B59LU

HumiSeal® 1B59LU is an air drying, single component, synthetic rubber conformal coating. The unique chemistry, of HumiSeal® 1B59LU imparts extremely low moisture vapor permeability and improved heat resistance. The coating demonstrates excellent flexibility, low stress on components, fluoresces under UV for ease of inspection and is easily repaired. The coating is in full compliance with the RoHS Directive 2011/65/EU and meets the requirements of IPC-CC-830.

Overview

Have a Question?

Our experts are ready to answer your questions!

Contact Us

HumiSeal® 1B59LU is an air drying, single component, synthetic rubber conformal coating. The unique chemistry, of HumiSeal® 1B59LU imparts extremely low moisture vapor permeability and improved heat resistance. The coating demonstrates excellent flexibility, low stress on components, fluoresces under UV for ease of inspection and is easily repaired. The coating is in full compliance with the RoHS Directive 2011/65/EU and meets the requirements of IPC-CC-830.

Overview

Specifications

ChemistrySynthetic Rubber
Curing ConditionsAir, Heat
Material24 hrs @ RT or 30 min @ 76°C
Volatile Organic Compounds25-75 microns
Cure Time24 hrs @ RT or 30 min @ 76°C

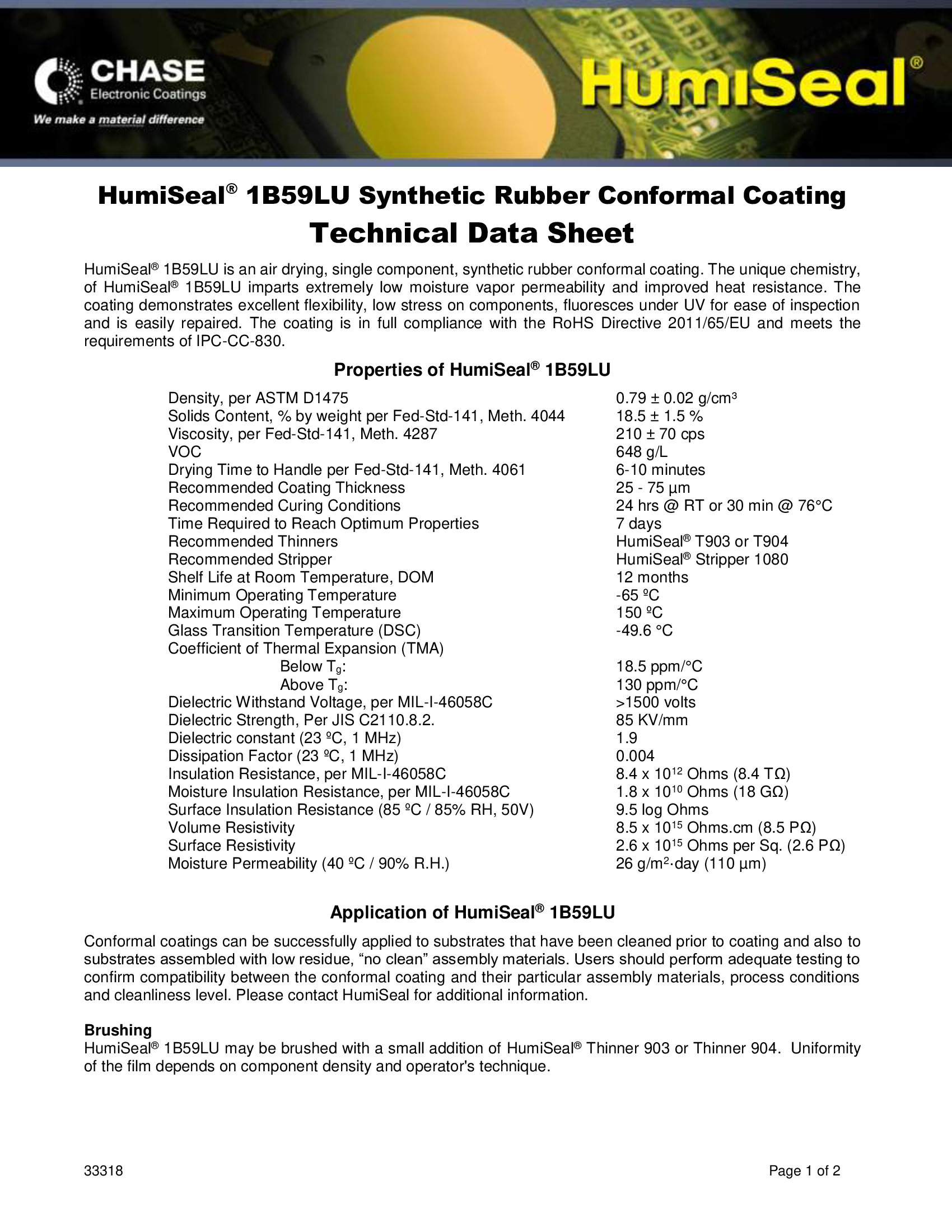

Downloads
